160KW Medium Frequency Induction Heating Machine With Touch Screen

160KW Medium Frequency Induction Heating Machine With Touch Screen
Features Gallery Product Description Request A Quote
Product Name: Medium Frequency Induction Heating Machine
Control Method: Full Digital Precision Control
Work Time: Continuous 24 Hours Per Day
Applications: Hardening, Forging, Annealing, Quenching, Melting
Voltage: 380V 3phase
Warranty: 1 Year
After Sale Service: Online Technical Support, Door To Door Service
Major Features: Fast Heating, High Output, Enviromental Friendly
High Light:

160KW Medium Frequency Induction Heating Machine


Touch Medium Frequency Induction Heating Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Model Number: GYMD-160AB
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 5-8 workdays
Payment Terms: T/T
Supply Ability: 500 SETS per month
Product Description

160KW Touch Screen Medium Frequency Induction Heating Machine For Surface Quenching

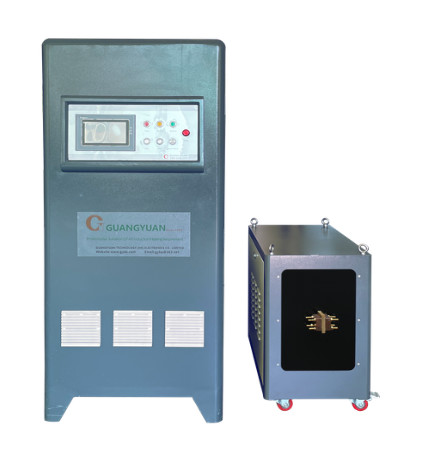

160KW Medium Frequency Induction Heating Machine With Touch Screen 0


Induction heating machine, is a machine for heating. It is not heated by traditional fire, but heated by high-frequency alternating current. But it is different from traditional heating, and it is much faster than traditional heating. (The machine can heat up to about one thousand degrees Celsius in a few seconds). Its characteristic is that the surface of the heated object is very hot and the temperature rises quickly. But the temperature inside rises slowly. This feature makes it very well used in the field of metal surface quenching.

Induction heating machine which are widely used in machinery manufacturing, welding, and pipe manufacturing. When it works, it uses alternating current to generate an electromagnetic field. When we put the metal original into the device, this electromagnetic field will affect the metal original's own magnetic field, causing a magnetic vortex inside the metal original. In this way, the molecules begin to become active, which in turn heats up the metal workpiece rapidly.

Its heating effect is related to the size of the current, the size of the magnetic field, and the frequency of the magnetic field. (I need to remind everyone here that only the original metal can be heated, because only the metal inside has this kind of magnetic field.) Finally, since the heater itself is also made of metal, the device itself will also generate heat, so at the end, cooling water is required for the machine to cool down.

160KW Medium Frequency Induction Heating Machine With Touch Screen 1
THE PRAMETERS OF 160KW Medium Frequency Induction Heating Machine With Touch Screen:

Model GYMD-160KW (Three phase)
Work power 340V-430V
Maximum input current 240A
Output power 160KW
Fluctuating frequency 1-10KHZ
The flow rate of cooling water 0.08-0.16Mpa 12L/Min
Water temperature protection point 50C
Product size 1090x650x1610 mm
Net weight 265 kg

160KW Medium Frequency Induction Heating Machine With Touch Screen 2
induction melting machine, induction melting furnace, induction smelting

160KW Medium Frequency Induction Heating Machine With Touch Screen 4


Energy saving

  • If we want to heat a large mechanical original, we don't need to heat the entire original. We only heat the part to achieve energy saving effect.

Fast speed

  • Compared with traditional heating, it has a heating speed that can not be imagined by traditional heating methods. It can complete the heating work in a few seconds.

Multiple functions

  • The induction heater can achieve the effect of one machine with multiple functions. It can not only heat-treat the original, but also complete the work such as smelting and welding.


  • The machine is ready to use and does not require preheating and other operations, which saves time.

Green and environmental protection

  • Electricity has always been a clean energy source, and it has no secondary pollution. And it is very safe and reliable, which improves the quality of the work space.

Environmental protection and energy saving are the requirements of the world. The induction heater conforms to this trend, so we believe that it will have a broader space for development in the future.


160KW Medium Frequency Induction Heating Machine With Touch Screen 5


  • Quenching for various hardwar and tools, such as plier, wrench, hammer, screwing tools and shear
  • Quenching for various automobile and motorcycle fittings, such as crankshaft, connecting rod, pistion pin, chain wheel, aluminum wheel, valve, rock, arm shaft, semi drive shaft, small shaft and fork. Various electric tools, such as gear and axes.
  • Quenching for machine tools, suach as lathe deck and guide rail.
  • Quenching for various hardwar metal parts and machined parts, such as shaft, gear, cam, chuck and clamp etc.
  • Quenching for hardware molds, such as small-size mold, mold accessory and inner hole of mold.

induction quenching

160KW Medium Frequency Induction Heating Machine With Touch Screen 7

GY Induction has been engaged in manufacturing of induction heating machine for 27years. At present, there are currently more than 10,000 GY induction heating machines working all over the world. GY induction heating machines are widely used in mechanical forging heating processing, industrial heat treatment manufacturing, tool induction brazing manufacturing, and other fields. Based on the principles of induction technological updates and customers' need, GY induction heating has always been strving to produce industrial induction heating machines with GY Induction Heating's own characteristics and independent core technologies in the induction heating industry. With the upgrading of induction heating equipment from generation to generation, as well as our rich experience in induction heating industrial applications, we serve end customers with high quality industrial induction heating machines all over the world. Taking "win-win with customers" as our value foundation, GY Induction Heating, with our complete R&D designs, project solutions, production team, and after-sales support, are looking forward to cooperating with you.
