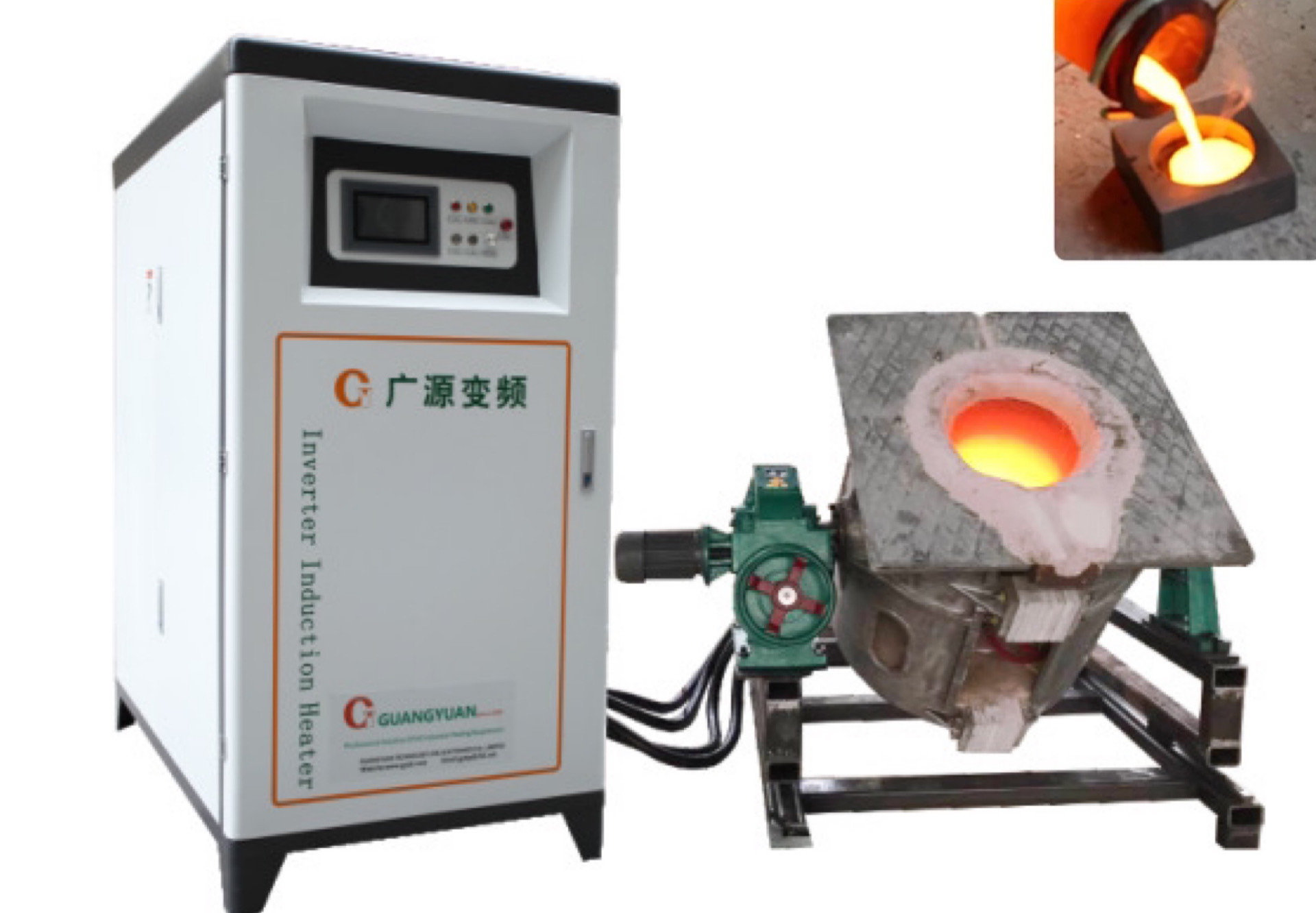

Touch Screen Induction Melting Machine 250KW 380V For Metal Melting

250KW Touch Screen 380V Induction Melting Machine For Metal Melting


INDUCTION MELTING MACHINE:

Induction melting furnace is an electrical furnace in which the heat is applied by induction heating principle to the metal. Induction furnace is used to melt iron and steel, copper, aluminum, and precious metals.

Induction melting furnace is widely used in the metal industry for melting or heating slabs or rods in continuous casting plants because of good heating efficiency, high production rate, and clean working environments.

The parameters of the 250KW Touch Screen 380V Induction Melting Machine For Metal Melting :

Model: GYMD-250KW

Max output power: 250KW

Smelting weight of steel, and iron: 200kg

Smelting weight of aluminum, bronze, and other precious metals: 400kg

The parameters of the GYTS--250KW:

Metals Melting

GY induction melting equipment is capable of melting any type of metal for various industrial applications. We are often contacted by Foundries, Metals Manufacturers, Mining and Metalworking Companies, as well as for other large-scale custom induction melting applications.

Precious Metals Melting & Refining

We offer a range of specialized induction melting equipment for the Jewelry, Mining, and Refining industries.

Smelting

Smelting is an essential process for the production of metal. Our smelting equipment helps successfully extracts all types of metals from ores in a fast and efficient way.

Custom Melting Projects

You can contact GY for a custom induction melting solution. Our equipment can be manufactured and automated for both small and large-scale projects.

THE ADVANTAGES OF THE INDUCTION MELTING FURNACE:

The Advantages of Light Touch Screen Induction Heating Machine:

• It has a sensitive reaction speed;
• Light touch screen front panel switch is not easy to enter debris, dust, and oil penetration; Also it is easy to clean and dustproof;
• Personalized design, simple and beautiful appearance,
• Reasonable internal structure design (Less internal loss; Light load; Accessories are not easily become hot)

Light Touch Screen Induction Heating Machine type Advantage for Melting:

• This equipment adopts an advanced pulse density modulation power adjustment method, which controls the power size by adjusting the drive pulse generation density of the inverter power switch tube, referred to as PDM power adjustment;
• The main advantage of the PDM power modulation method: Is to ensure that the operating frequency of the equipment is basically unchanged through frequency tracking technology, and is synchronized with the network resonance frequency so that the inverter always works in the resonance state, has a higher power factor, and can be achieved The power switch tube always works in the soft switching state, which greatly reduces the switching loss and reactive loss.
