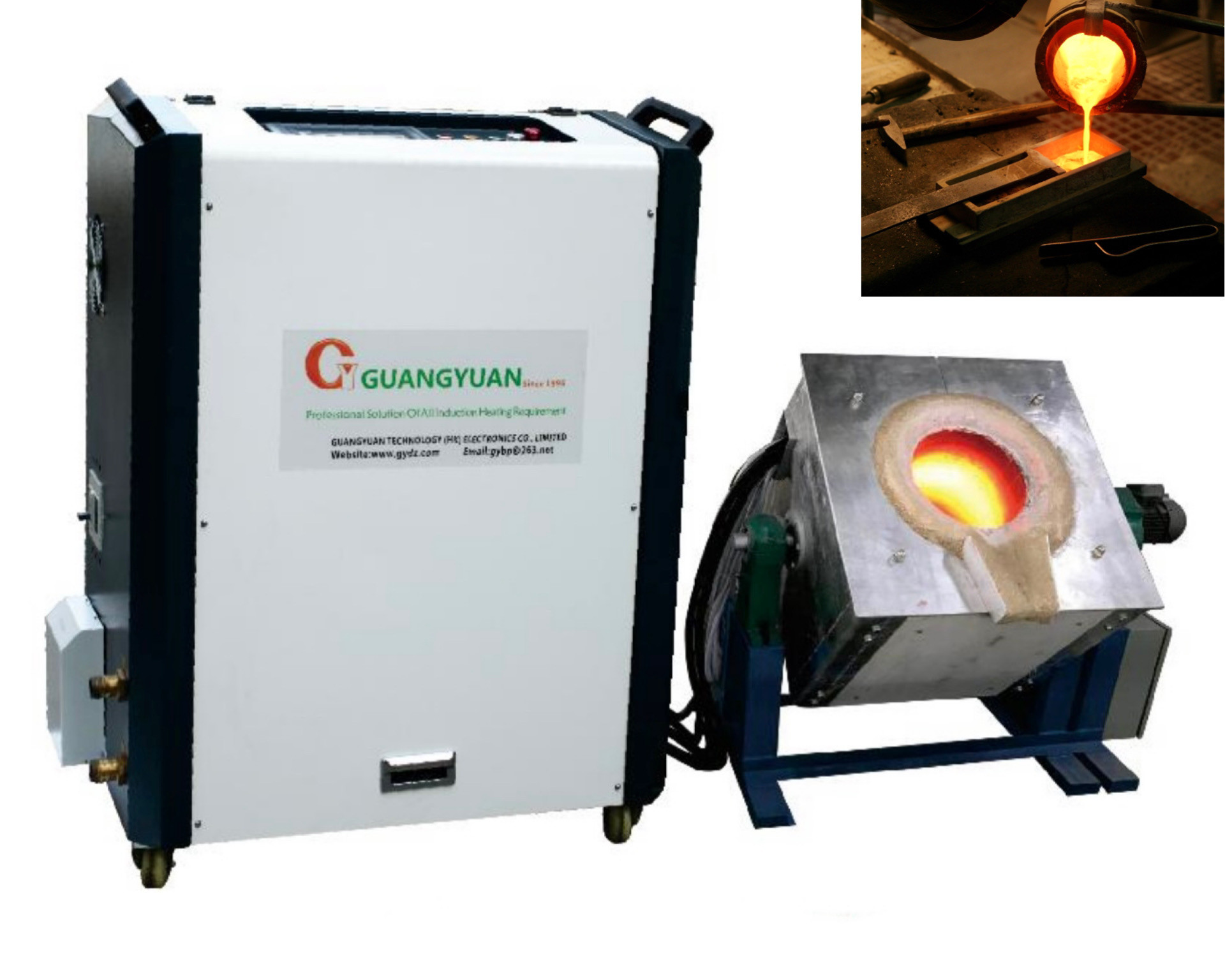

10KHZ Light Frequency Induction Melting Equipment 60KW With Touch Screen

60KW Induction Melting Equipment Touch Screen Light Frequency 1-10Khz For Metal Melting


INDUCTION MELTING MACHINE:

• An induction furnace is an electrical furnace in which the heat is applied by induction heating of metal.

• Induction furnace capacities range from less than one kilogram to one hundred tons, and are used to

• melt iron and steel, copper, aluminum, and precious metals.

•

  The advantage of the induction furnace is a clean, energy-efficient and well-controlled melting process,

• compared to most other means of metal melting.

MAIN CHARACTERISTICS:

An induction furnace consists of a nonconductive crucible holding the charge of metal to be melted, surrounded by a coil of copper wire. A powerful alternating current flows through the wire. The coil creates a rapidly reversing magnetic field that penetrates the metal. The magnetic field induces eddy currents, circular electric currents, inside the metal, by electromagnetic induction.[9] The eddy currents, flowing through the electrical resistance of the bulk metal, heat it by Joule heating. In ferromagnetic materials like iron, the material may also be heated by magnetic hysteresis, the reversal of the molecular magnetic dipoles in the metal. Once melted, the eddy currents cause vigorous stirring of the melt, assuring good mixing.

An advantage of induction heating is that the heat is generated within the furnace's charge itself rather than applied by a burning fuel or other external heat source, which can be important in applications where contamination is an issue.

Operating frequencies range from utility frequency (50 or 60 Hz) to 400 kHz or higher, usually depending on the material being melted, the capacity (volume) of the furnace and the melting speed required. Generally, the smaller the volume of the melts, the higher the frequency of the furnace used; this is due to the skin depth which is a measure of the distance an alternating current can penetrate beneath the surface of a conductor. For the same conductivity, the higher frequencies have a shallow skin depth—that is less penetration into the melt. Lower frequencies can generate stirring or turbulence in the metal.



The parameters of the 60KW Induction Melting Equipment Touch Screen Light Frequency 1-10Khz For Metal Melting :

Specification:

Model: GYMQ-TC-60KW

Max output power: 60KW

Smelting weight of steel, iron: 30kg

Smelting weight of aluminum, bronze, and other precious metals: 60kg

The parameters of the GYMQ-TC-60KW:

THE ADVANTAGES OF THE INDUCTION MELTING FURNACE:

GY produces equipment and employees the newest modern technologies. Equipment completes with reliable, quality parts and has manifold advantages, such as:

• High-quality component parts are used;
• Ecologically clean and quality materials are used, without usage of asbestos;
• Reliable thyristor frequency converters with automatic frequency trim during melting process;
• Higher melting power;
• Cylinder rods are defended against metal splashes;
• High reliability of furnaces operation;
• Safety of equipment while in operation;
• Inductance of induction coils and connective lines, capacity of capacitor banks are optimized. As a result there are minimal losses in the furnace contour, as in: Higher output; Economically power consumption; Higher efficiency coefficient.

We have established an R&D system. It is supported by advanced engineers and professional workers, who are especially engaged in researching and developing the machinery of middle or high frequency induction heating and high frequency inverter electrolysis and galvanization power supply. Since we owned strong technique development capability, our factory has been insisting on producing new product and new craftwork to assure our leading position on technique in this field.

Under the effort of several years, our factory has produced series of high quality products in various categories. We can also exclusively produce these products on your requirement to meet you need. Our middle or high frequency induction heating equipment is produced for special voltage condition of some countries. For instance, there is single-phase 110V, three-phase 220V induction heating equipment for America and Japan and three-phase 415V, 440V induction heating equipment for such southwestern Asia countries as Malay and Thailand.
