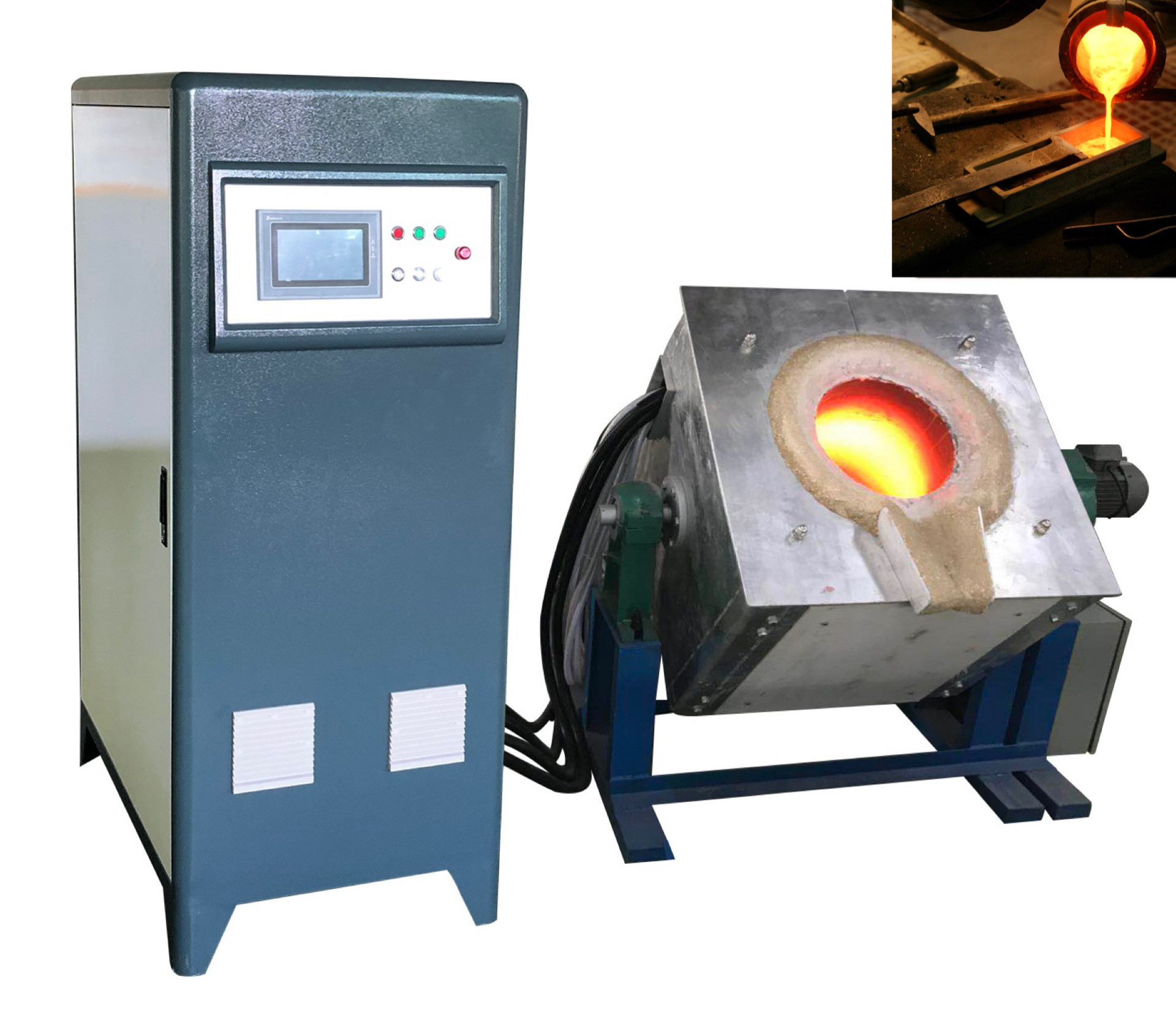

160KW 24 hours No-stop Working Iron or Steel Induction Melting Furnace
INDUCTION MELTING FURNACE:
Induction melting is a process in which an induction melting furnace is used to heat a metal to its melting point. Metal to be melted is usually placed in a crucible and heated with induction to its melting point. Metals like gold, silver, copper, or special alloys, both ferrous and non-ferrous, can be melted in an induction furnace. Induction melting is cleaner and more flexible than conventional foundry methods.
MAIN CHARACTERISTICS:
Induction melting describes the process that melts metal into liquid in an induction furnace for casting workpieces.
The significant advantage of induction melting is the high quality of liquid metal. Induction melting is clean and uniform which effectively reduces the impurities in finished products. Furthermore, induction melting is more safety and more time-saving. The automated induction melting line avoids industrial accidents in operation miss and makes the heating process stable and effective.
Induction melting is broadly employed in industry, especially for casting. Our induction melting solutions are well-adapted to different types of metals including steel, iron, stainless steel, aluminum, brass, and other Non-ferrous metals.
The parameters of the the160KW 24 hours No-stop Working Iron or Steel Induction Melting Furnace :
| Model | GYMD-160KW (Three phases) |
| Work power | 340V-430V |
| Maximum input current | 240A |
| Output power | 160KW |
| Fluctuating frequency | 1-10KHZ |
| The flow rate of cooling water | 0.08-0.16Mpa 12L/Min |
| Water temperature protection point | 50C |
| Product size | 1090x650x1610 mm |
| Net weight | 265 kg |
THE ADVANTAGES OF THE INDUCTION MELTING FURNACE:
1, Environmental protection, more uniform melting.
2, Intelligent control, intelligent diagnosis, comprehensive and independent protection.
3, Energy saving and consumption reduction, 10-30% energy saving than traditional induction heating machine.
4, Easy installation, simple operation, no need to configure.
5, Precise digital control to ensure the IGBTzero-crossing switch, the equipment is more stable.
6, Instant use, ready to use, any temperature, any load, fast start.
7, Safe and efficient, the output voltage is only half of the traditional induction heating equipment, and the heating effect is better.
SIX PROTECTION OF THE INDUCTION MELTING FURNACE:
We have established an R&D system. It is supported by advanced engineers and professional workers, who are especially engaged in researching and developing the machinery of middle or high-frequency induction heating and high-frequency inverter electrolysis and galvanization power supply. Since we owned strong technique development capability, our factory has been insisting on producing new products and new craftwork to assure our leading position on technique in this field.
Under the effort of several years, our factory has produced a series of high-quality products in various categories. We can also exclusively produce these products on your requirement to meet your need. Our middle or high-frequency induction heating equipment is produced for special voltage conditions in some countries. For instance, there is single-phase 110V, three-phase 220V induction heating equipment for America and Japan and three-phase 415V, 440V induction heating equipment for such southwestern Asia countries as Malay and Thailand.
