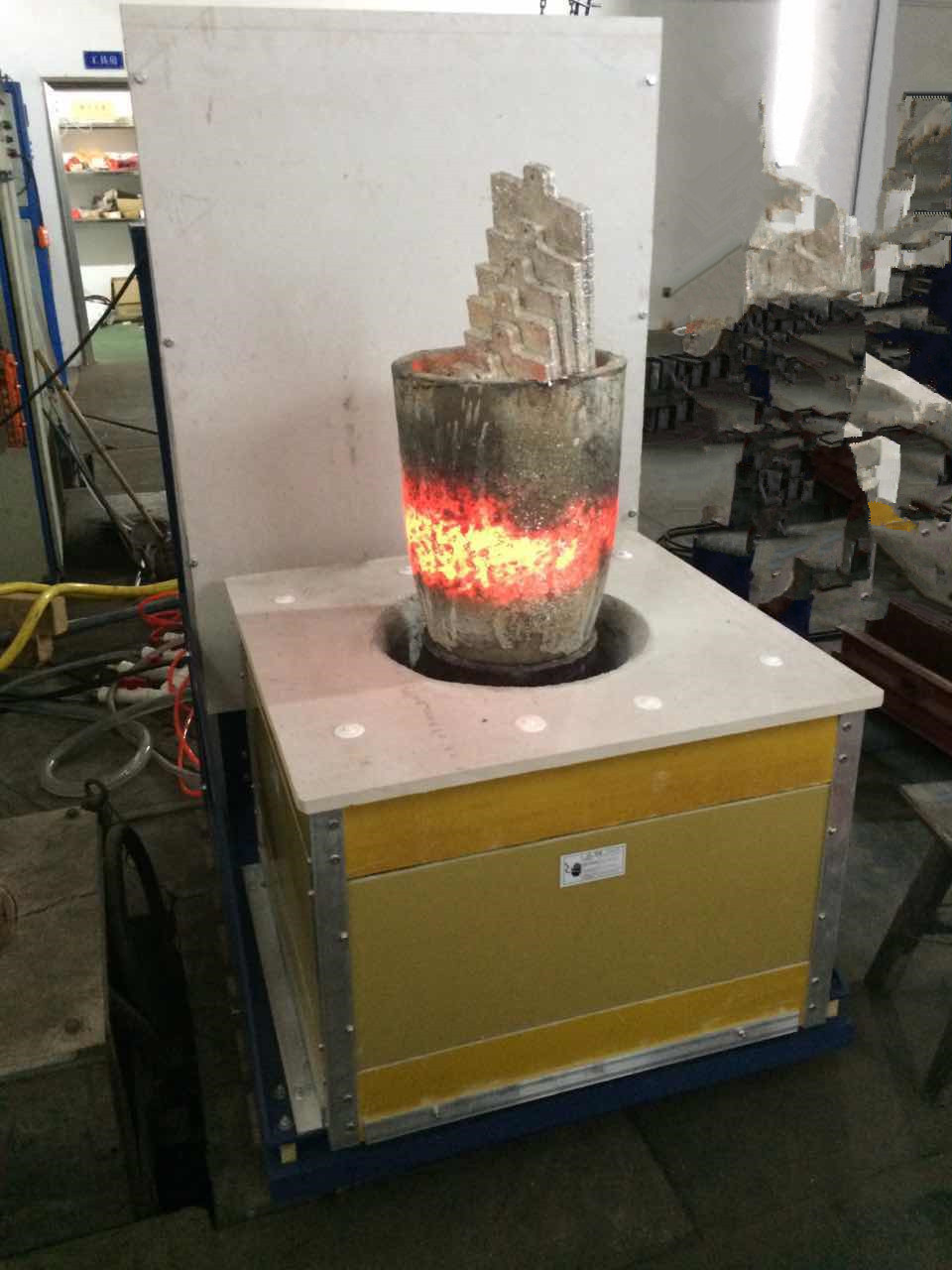

Max. Temperature 1800C Induction Melting Machine With Touch Screen / IGBT System

Max. Temperature 1800C Induction Melting Machine With Touch Screen / IGBT System
Features Gallery Product Description Request A Quote
Max. Melting Capacity: 1-1000kg/h
Power Supply: 220V/380V/415V/440V/480V
Control System: IGBT System
Heating Mode: Induction Heating
Protection System: Over-Current/ Over-Voltage/ Over-Temperature/ Short-Circuit
Cooling Mode: Water Cooling
Melting Material: Iron/ Steel/ Copper/ Aluminum/ Stainless Steel
Safety System: Emergency Stop/Interlock/Ground Fault
High Light:

IGBT System Induction Melting Machine


Touch Screen Induction Melting Machine

Basic Infomation
Place of Origin: China
Brand Name: GY
Certification: CE, ROHS, SGS, FCC
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 7 workdays
Payment Terms: 100% TT before shipment
Supply Ability: 500set per month
Product Description

Product Description:

Induction Melting: Cost-effective and Efficient


Induction melting is an effective and energy-efficient way to increase the temperature of metal or ore to its melting point. This process can be used to perform metallurgical processes like smelting, alloying, mixing and casting.


In induction furnaces, a coil that carries an alternating electric current surrounds the container which has metal in it. This process is known as eddy currents, and it creates charge in the metal which ultimately leads to high temperatures. This process can be used for melting metals and creating various alloys. Moreover, it is one of the first steps in producing a useful product.


Induction melting is quite fast and effective. Depending on the changes in geometry and size of induction coils, it is possible to melt a vast range of items, from common coffee mugs to tons of molten metal. Further, by making modifications in frequency and power, we can process all kinds of materials and metals like iron, steel, stainless steel alloys, copper, aluminum, and silicon. We customize our induction equipment for every application, ensuring maximum efficiency.




VS resistance heated furnace:

Compared with other types of furnaces, the resistance-heated furnace has the advantages of high heat efficiency and fast melting speed, as well as small size which can save energy by up to 30%. However, resistance or silicon carbide stocks are easy to be damaged.


VS Coal , Gas ,diesel furnace:

Coal and gas furnaces are easy to adjust solution composition and temperature, and consequently reducing the bubbling of the foundry by 1/3 to 1/4, and the reject rate by 1/2 to 2/3, so the cast has higher mechanical strength. It also reduces burning oxidation. Induction melting can melt scrap and small pieces with its electromagnetic stirring effect, reducing the cost of materials while offering environmental protection. Noise is much lower than towering equipment, thus improving the labor intensity of workers and working conditions. However, the Cast-iron crucible used in Coal and gas furnaces is harmful to the aluminum alloy by increasing impurity. Graphite crucible used in induction melting without such disadvantages.


VS SCR or Frequency Melting Furnace:

Similarly, SCR or frequency melting furnaces also have the advantages of high heat efficiency and fast melting speed. Besides, it has a small size which can save energy above 20%. The electromagnetic stirring effect of this type of furnace is slight so the service life of the crucible is extended. By adjusting the frequency to achieve power regulation, the melting speed increases; material elements burning loss decreases and better energy saving is obtained, particularly for heating of stainless steel, copper, silicon, aluminum, and other non-magnetic materials, thereby reducing the cost of the casting.


Such as equipment 70KW melting aluminum, cost of melting IT:

The resistance melting furnace needs 70%; the frequency melting furnace needs 70%; the diesel melting furnace needs 60%; the SCR melting furnace needs 80%.


Technical Parameters:

Specification of Smelting weight

For Steel and Iron

  • GYM-25KW: 8KG
  • GYM-40KW: 20KG
  • GYM-60KW: 30KG
  • GYM-100KW: 50KG
  • GYM-160KW: 100KG
  • GYM-200KW: 150KG
  • GYM-250KW: 200KG


For Aluminum, Bronze, and Other Precious Metals

  • GYM-25KW: 20KG
  • GYM-40KW: 40KG
  • GYM-60KW: 60KG
  • GYM-100KW: 100KG
  • GYM-160KW: 200KG
  • GYM-200KW: 300KG
  • GYM-250KW: 400KG
induction melting furnace



GY induction melting equipment is capable of smelting any type of metal for various industrial applications. Foundries, metals manufacturers, mining and metalworking companies, as well as other large-scale custom melting applications. contact us to learn how our induction melting equipment can benefit your business.


Investment casting or lost-wax casting is one of the most common and oldest metal casting techniques. Our induction melting equipment accelerates the process and enhances the repeatability and reliability of the cast metal parts.


Smelting is a pivotal process for the fabrication of metals. Employing our smelting equipment can help you efficiently extract various types of metals from ores.


We provide a range of specialized induction melting equipment for the jewelry, mining, and refining industries. Our induction melting furnaces are designed to be used for melting and refining precious metals.


Support and Services:

Technical Support and Service for Induction Melting Machines

We provide technical support and services for Induction Melting Machines. Our team of experienced professionals has in-depth knowledge of the machines and understands the complexities of their operations.

Our technical support includes troubleshooting, repairs, maintenance, software updates, and installation services. We also offer a wide range of spare parts for all models of induction melting machines. In addition, we provide comprehensive training for operators and maintenance personnel.

We are committed to providing the highest quality service and support for our customers. Our team of experts is available around the clock to assist with any inquiries or issues that may arise. We strive to provide prompt and effective solutions to ensure that your machines are running at their peak performance.


Packing and Shipping:

Packaging and Shipping of Induction Melting Machine

The induction melting machine is shipped in a sturdy wooden box, protected with appropriate padding and materials. The wooden box is securely sealed to prevent damage during transportation. The wooden box also contains instructions for use and care, as well as any other relevant documentation.

The induction melting machine is shipped by a reliable, reputable shipping company. The package is tracked and insured against damage or loss during transit. The customer is provided with a tracking number and delivery confirmation.

Upon delivery, the customer should inspect the box for any signs of damage. If any damage is found, the customer should refuse delivery and contact the shipping company for further instructions.
