IGBT Intermediate Frequency Metal Induction Melting Machine With Touch Screen

IGBT Intermediate Frequency Metal Induction Melting Machine With Touch Screen
Features Gallery Product Description Request A Quote
Product Name: Induction Melting Machine
Control Method: Full Digital Precision Control
Melting Materail: Steel, Iron, Aluminum, Bronze, And Other Precious Metals
Key Point: Energy Saving,HIgher Output
Voltage: 340V-430V
Warranty: 12 Months
After Sale Service: Online Technical Support, Door To Door Service
Application: Melting Steel, Iron, Sliver, Gold, Copper And Other Metals.
High Light:

Metal Induction Melting Machine


IGBT Induction Melting Machine


IGBT Induction Melting Furnace

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Model Number: GYMD-250KW
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 5-8 workdays
Payment Terms: T/T
Supply Ability: 500 SETS per month
Product Description

IGBT Intermediate Frequency Melting Furnace For Metal Melting With Touch Screen

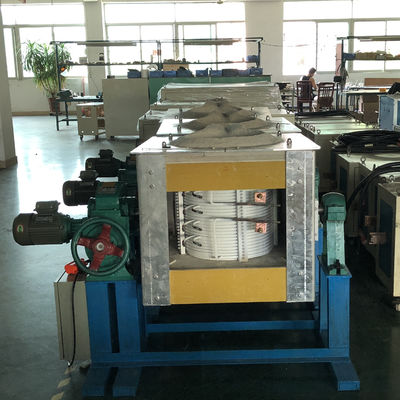

IGBT Intermediate Frequency Metal Induction Melting Machine With Touch Screen 0



Induction melting furnace is an electrical furnace in which the heat is applied by induction heating principle to the metal. Induction furnace is used to melt iron and steel, copper, aluminum, and precious metals.


Induction melting furnace is widely used in the metal industry for melting or heating slabs or rods in continuous casting plants because of good heating efficiency, high production rate, and clean working environments.

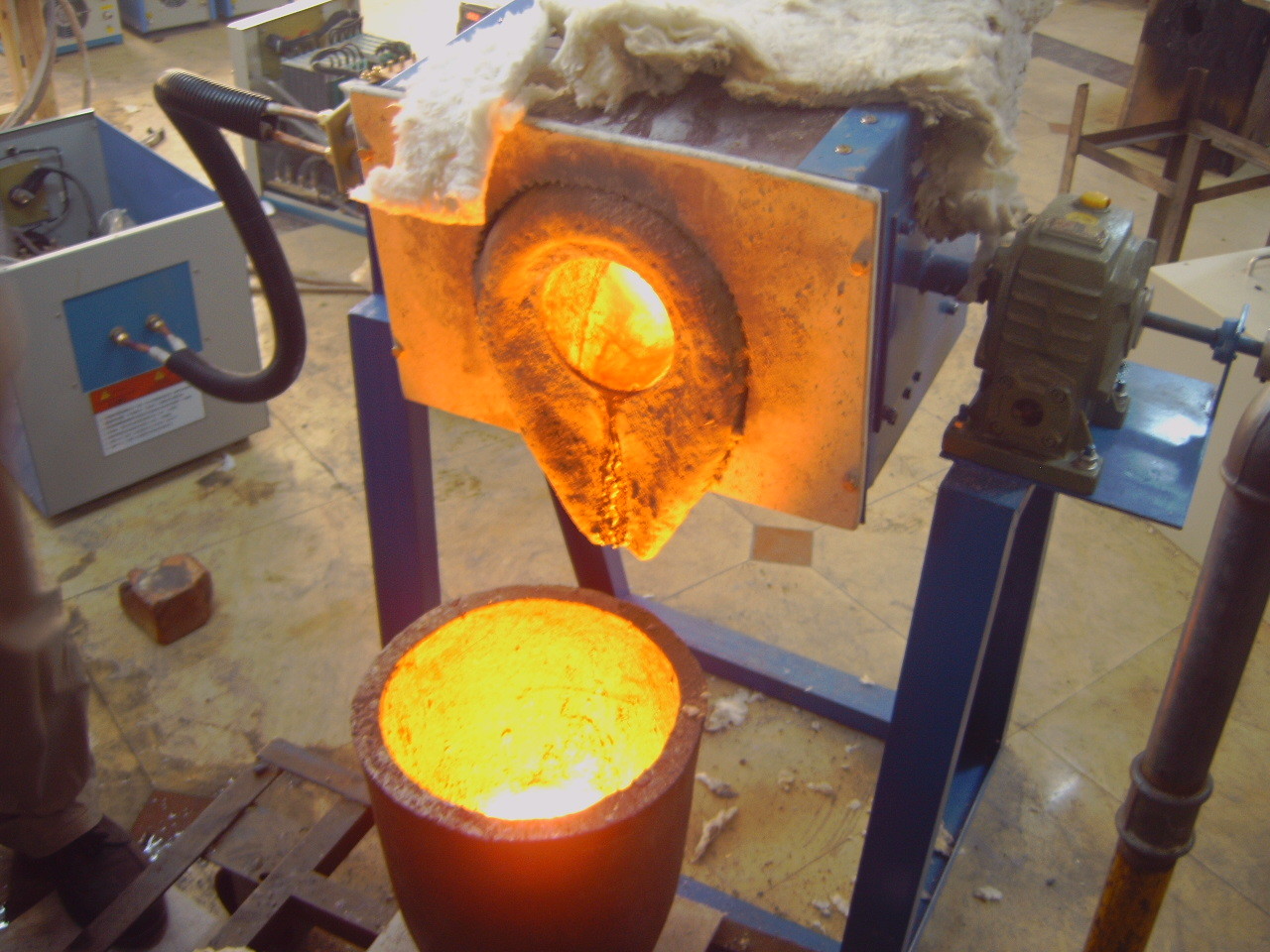

IGBT Intermediate Frequency Metal Induction Melting Machine With Touch Screen 1
The parameters of the 250KW Touch Screen 380V Induction Melting Machine For Metal Melting :

Model: GYMD-250KW

Max output power: 250KW

Smelting weight of steel, and iron: 200kg

Smelting weight of aluminum, bronze, and other precious metals: 400kg


Specification Smelting weight of steel and iron Smelting weight of aluminum, bronze, and other precious metals
GYM-40KW 20KG 40KG
GYM-60KW 30KG 60KG
GYM-100KW 50KG 100KG
GYM-160KW 100KG 200KG
GYM-200KW 150KG 300KG
GYM-250KW 200KG 400KG


The parameters of the GYTS--250KW:

Model GYMD-250AB (Three phase)
Work power 340v-430v
Max input current 375A
Max output power 250KW
Fluctuating frequency 1-10KHZ
The flow rate of cooling water 0.15-0.3Mpa 15L/Min
Water temperature protection point 40C
Product size 650x780x1217 mm
Net weight 270 kg

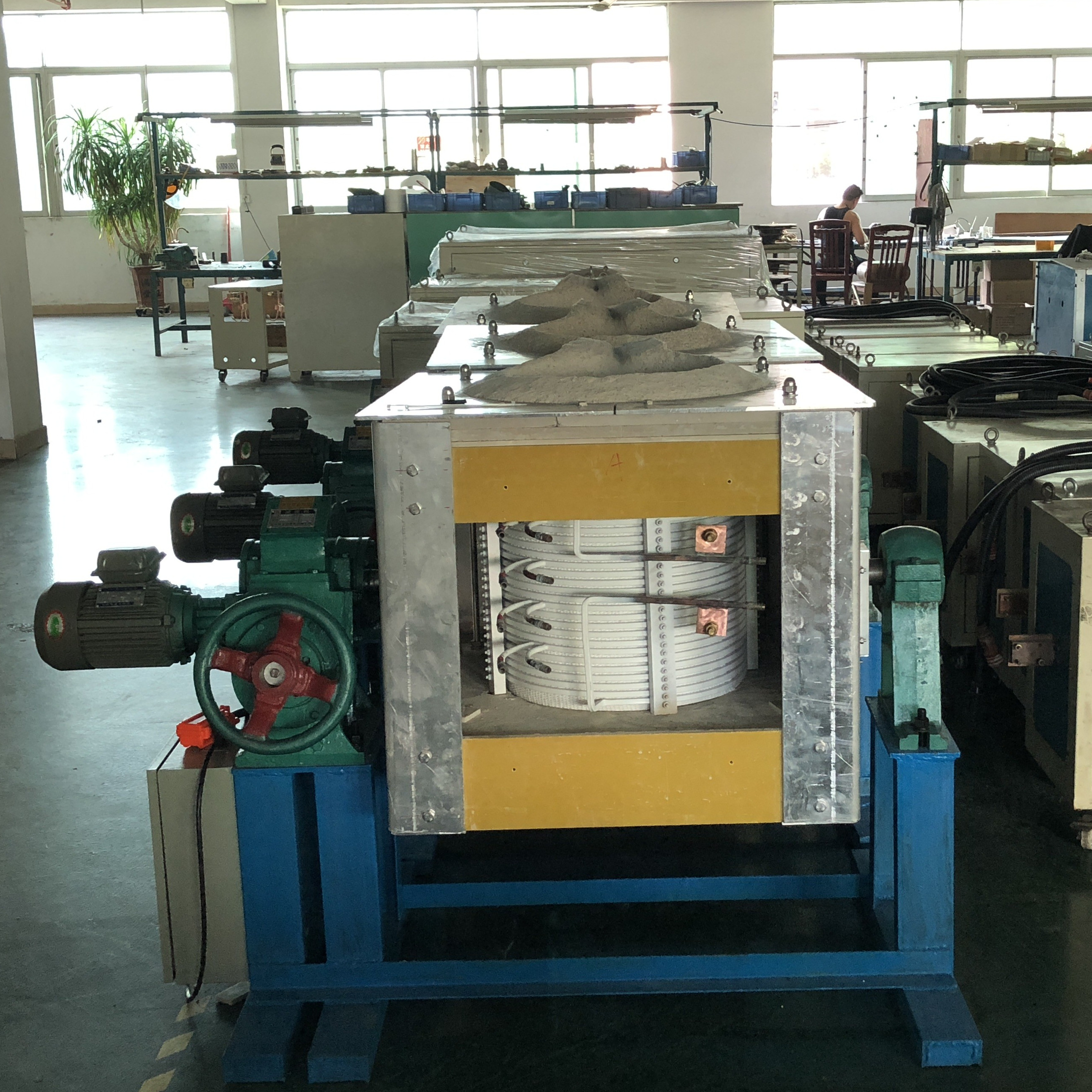

IGBT Intermediate Frequency Metal Induction Melting Machine With Touch Screen 2

induction melting machine, induction melting furnace


IGBT Intermediate Frequency Metal Induction Melting Machine With Touch Screen 4


Metals Melting

GY induction melting equipment is capable of melting any type of metal for various industrial applications. We are often contacted by Foundries, Metals Manufacturers, Mining and Metalworking Companies, as well as for other large-scale custom induction melting applications.


Precious Metals Melting & Refining

We offer a range of specialized induction melting equipment for the Jewelry, Mining, and Refining industries.



Smelting is an essential process for the production of metal. Our smelting equipment helps successfully extracts all types of metals from ores in a fast and efficient way.


Custom Melting Projects

You can contact GY for a custom induction melting solution. Our equipment can be manufactured and automated for both small and large-scale projects.


How to choose the suitable melting crucible?

In order to improve the silver melting furnace’s working efficiency and serving life, we will choose durable crucibles to save your costs a lot. Below I will show you how to choose a suitable induction melting crucible:

  • Magnesia crucible: It is mainly used for smelting iron and steel.
  • Graphite crucible: It is mainly used for the smelting of non-ferrous metals such as copper, aluminum, silver, gold, and silver crucible with pure graphite.
  • Whitestone crucible: It is mainly used for high melting point metal melting such as titanium alloy, and nickel alloy.


IGBT Intermediate Frequency Metal Induction Melting Machine With Touch Screen 5



The IGBT intermediate frequency melting furnace adopts an IGBT inverter module for more energy saving and becomes the best choice for small and medium-sized enterprises.


With the continuous development of the industrialization process, traditional heating with coal is not only incompatible with the progress of the times but also not environmentally friendly and expensive. For some small and medium-sized enterprises, energy saving, consumption reduction, and cost reduction have become urgent problems to be solved.

At this time, the IGBT inverter module came into being, and the main reason why IGBT is widely used in the field of induction heating is that compared with thyristor power supply, its biggest advantage is energy saving and relevant data show that IGBT Compared with ordinary thyristor power supply, the energy saving is more than 30%.


IGBT medium frequency induction melting furnace is a new type of IGBT inverter module, which is mainly used for smelting steel, stainless steel, brass, copper, aluminum, aluminum alloy, non-ferrous metals, etc. Compared with silicon power supply, in the heating process, it will not pollute the power grid and transformer, and the converter will not be heated to interfere with the work of other electronic devices.


IGBT adopts frequency and power regulators, and has high working efficiency, especially in the smelting of stainless steel, copper material, aluminum material, and other non-magnetic materials, it will not be affected by the thickness of the charge and lining. Therefore, the burning loss of the furnace lining is reduced, which greatly reduces the casting cost.


In addition, the IGBT induction melting furnace developed by GY adopts DSP or ARM all-digital embedded software, has rich communication interfaces, and can realize remote control; induction heating has its own electromagnetic stirring force, which can make the melt more uniform, which is beneficial to Scum, reduce impurities, make the solution and casting bright without shrinkage and porosity.
