150KHZ Ultra High Frequency Induction Heating Machine With Touch Screen

150KHZ Ultra High Frequency Induction Heating Machine With Touch Screen
Features Gallery Product Description Request A Quote
Product Name: Ultra High Frequency Inductor
Control System: Digit Touch Screen IGBT
Frequency: 50-150KHZ
Work Power: 380V 3phase
Application: Hardening, Quenching, Annealing, Shrink Fit, Melting
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

150KHZ Ultra High Frequency Induction Heating Machine


Touch Ultra High Frequency Induction Heating Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS
Model Number: GYHD-100AB
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

Touch Screen, Easy Operation 50-150KHZ Ultra High Frequency Induction Heating Equipment

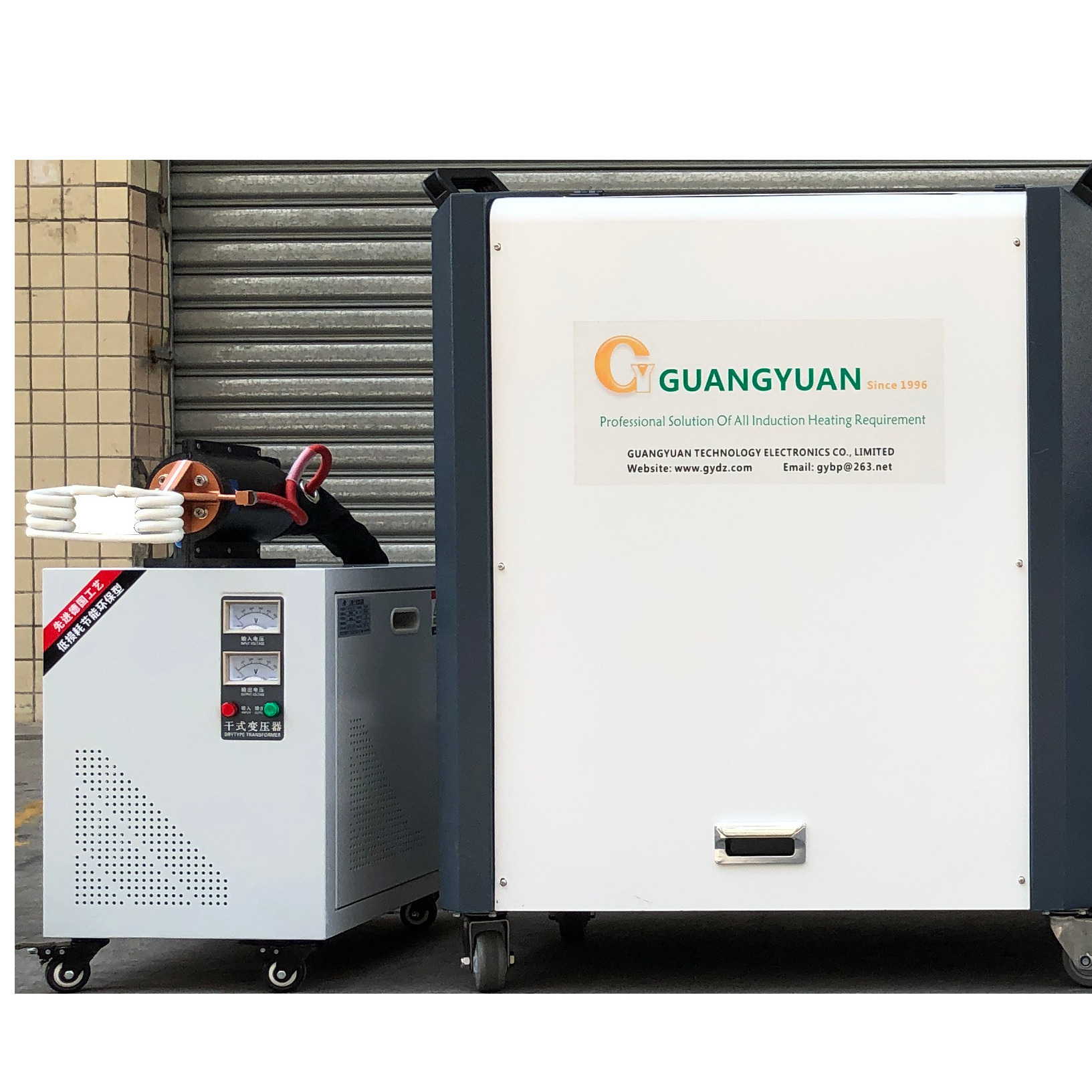

150KHZ Ultra High Frequency Induction Heating Machine With Touch Screen 0


Induction heating equipment made in GY involves heating an electrically conductive material, such as copper or steel, by using controlled radiofrequency (RF) energy to create an electrical current within the object. Unlike other heating methods that rely on an external heat source to heat the material, induction heating circulates electrical currents to generate heat from within the object itself. Products that are induction heated use thermal conduction to quickly and evenly transfer the heat from the surface to the object to its core.



150KHZ Ultra High Frequency Induction Heating Machine With Touch Screen 1


  • Micro parts can be heated. It can heat iron wire, steel wire, steel strip, miniature shafts, silver wire, fine gold and silver jewelry, and more.
  • The surface heats up quickly. Its skin effect is more obvious, which can quickly heat the surface of the workpiece, so it is very suitable for surface hardening.
  • High frequency. The highest frequency can reach more than 800 kHz, and the heating efficiency is high.
  • Flexible. Small size, equipped with casters, easy to move.
  • Self-protection function. Monitor current, voltage, water temperature, etc. When failure occurs, it can automatically alarm and stop running.



The power required to heat your work piece depends on:

  • The mass of your work piece
  • The material properties of your work piece
  • The temperature increase you require
  • The heating time required to meet your process needs
  • The effectiveness of the field owing to the coil design
  • Any heat losses during the heating process

After we determine the power needed to heat your work piece we can select the correct induction heating equipment taking the coil coupling efficiency into consideration.


technical parameters


Model GYH-100AB (Three phase)
Work power 340v-430v
Maximum input current 150A
Output power 100kw
Fluctuating frequency 50-150KHZ
The flow rate of cooling water 0.2Mpa, 6L/min
Water temperature protection point 50C
Product size main :760X400X880mm
transformer :510X300X450mm
Net weight main : 94kg
transformer : 27kg



induction heating machine




150KHZ Ultra High Frequency Induction Heating Machine With Touch Screen 5


  • Improved energy efficieny& reduction in energy costs
  • Reduction of the amount of scrap and defects
  • Scalable, controllable and repeatable process for manufacturing
  • Uniform, controlled heating process
  • Low maintance compared to alternatives
  • Flamless, safe


induction heating machine application


  • Heading - forming a head on blot, screw or rivet
  • Blanking - cutting a whole piece from sheet metal
  • Punching - cutting a hole
  • Slotting - cutting of elongated holes
  • Perforating - cutting a group of holes
  • Trimming - cutting away excess metal
  • Shearing - cutting in straight line across piece
  • Bending - producing single, double, straight flange, edge hem, curl or double hem bends

induction heating machine, induction heating equipment

Our services

Pre-sale service.
1.Inquiry and consulting service
2.recommend the most suitable for our customers according to their requirements
3.Sample testing support
4.working videos available
5.View our factory

In-sale service.
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service.
1. Warranty time: 1year Warranty.

2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
