380V 3 Phase Ultra High Frequency Induction Heating Machine For Forging Hot Forming

380V 3 Phase Ultra High Frequency Induction Heating Machine For Forging Hot Forming
Features Gallery Product Description Request A Quote
Product Name: Ultra High Frequency Inductor
Control System: Digit Touch Screen IGBT
Frequency: 100KHZ-200KHZ
Work Power: 380V 3phase
Application: Hardening, Quenching, Annealing, Shrink Fit, Melting
Warranty: 1 Year
Feature: Touch Screen, Safe, Easy Operation
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

380V Ultra High Frequency Induction Heating Machine


Forging Ultra High Frequency Induction Heating Machine


induction forging machine 3Phase

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS
Model Number: GYHD-100AB
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

 Induction Forging Ultra High Frequency Induction Heating Equipment For Hot Forming

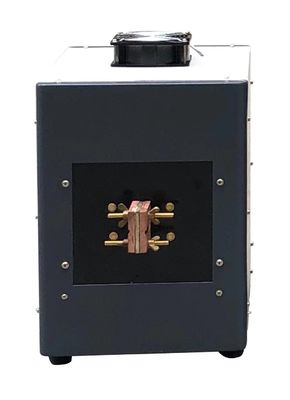

380V 3 Phase Ultra High Frequency Induction Heating Machine For Forging Hot Forming 0


Induction heating is a fast,efficient,precise and repeatable heat treatment method for heating metals or other electrically-conductive material.Material is a metal such as steel,iron,brass,aluminum,alloy,copper,stainless steel,tungsten,nickel,precious metals,silver,zinc,gold and etc.or be semiconductor such as silicon carbide,carbon or graphite.

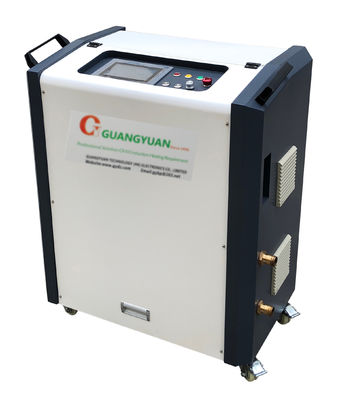

380V 3 Phase Ultra High Frequency Induction Heating Machine For Forging Hot Forming 1

380V 3 Phase Ultra High Frequency Induction Heating Machine For Forging Hot Forming 2



Metal forging and hot forming are excellent induction heating applications. Industrial forging and hot forming processes involve bending or shaping a metal billet or bloom after it has been heated to a temperature at which its resistance to deformation is weak. Blocks of non-ferrous materials can also be used. Induction heating machines or conventional furnaces are used for the initial heating process.


The approximate hot forming temperatures of the most commonly used industrial materials are:

• Steel 1200º C • Brass 750º C • Aluminium 550º C

Total Forming Applications:

Induction heating machines are commonly used to heat steel billets, bars, brass blocks, and titanium blocks to the proper temperature for forging and hot forming.

Partial Forming Applications

Induction heating is also used to heat parts such as pipe ends, axle ends, automotive parts, and bar ends for partial forming and forging processes.


Power Requirements:

The power required to heat your work piece depends on:

  • The mass of your work piece
  • The material properties of your work piece
  • The temperature increase you require
  • The heating time required to meet your process needs
  • The effectiveness of the field owing to the coil design
  • Any heat losses during the heating process

After we determine the power needed to heat your work piece we can select the correct induction heating equipment taking the coil coupling efficiency into consideration.


technical parameters


Model GYHD-100AB (Three phase)
Work power 340v-430v
Max input current 150A
Max output power 100KW
Fluctuating frequency 100-200KHZ
The flow rate of cooling water 0.15-0.3Mpa 10L/Min
Water temperature protection point 40C
Product size main :874x520x1100 mm
transformer :870x430x750 mm
Net weight main : 115 kg
transformer : 76.5 kg


induction heating machine

induction heating machine, induction heating equipmentinduction heating machine, induction heating equipment



380V 3 Phase Ultra High Frequency Induction Heating Machine For Forging Hot Forming 7


  • Springback effect is eliminated
  • Ductility is improved
  • Low pressure & minimal residual part stress
  • Better grain flow & microstructure
  • Improved mechanical properties
  • Reduced need for post production tempering & heat treating
  • Improved production rates with minimal defects

induction heating machine application


  • Heading - forming a head on blot, screw or rivet
  • Blanking - cutting a whole piece from sheet metal
  • Punching - cutting a hole
  • Slotting - cutting of elongated holes
  • Perforating - cutting a group of holes
  • Trimming - cutting away excess metal
  • Shearing - cutting in straight line across piece
  • Bending - producing single, double, straight flange, edge hem, curl or double hem bends


induction heating machine, induction heating equipment

Our services

Pre-sale service.
1.Inquiry and consulting service
2.recommend the most suitable for our customers according to their requirements
3.Sample testing support
4.working videos available
5.View our factory

In-sale service.
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service.
1. Warranty time: 1year Warranty.

2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
