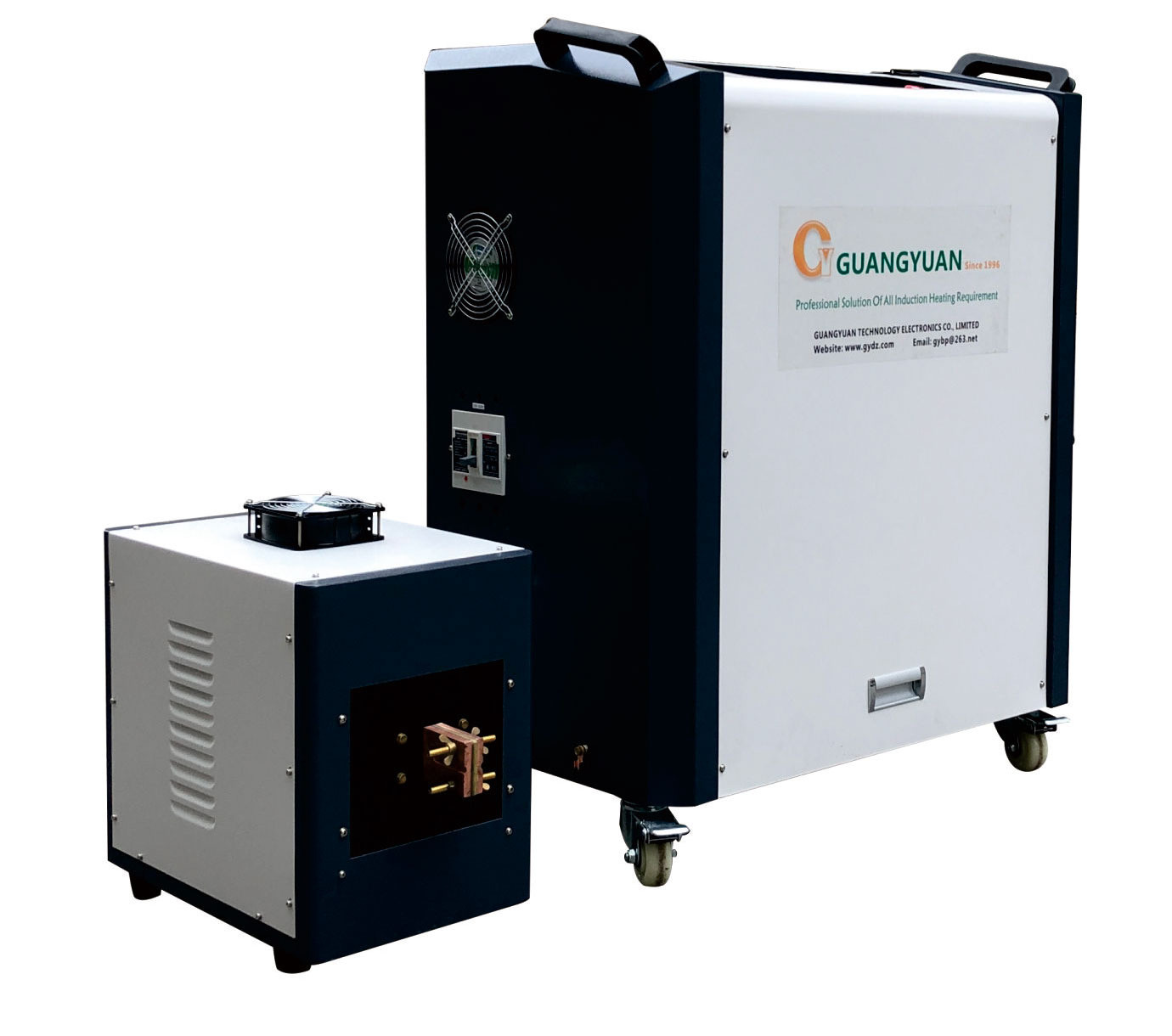

250KHZ Industrial Ultra High Frequency Induction Heating Machine Environmentally Friendly

Clean And Pollution-Free 50-250KHZ Ultra High Frequency Induction Heating Equipment

INDUCTION HEATING:

The ultra high frequency induction heating machine is a type of induction heating machine, with a frequency ranging between 200 kHz and 500 kHz. According to different heating processes of customers, we will adjust the frequency. The maximum frequency can reach 800 kHz, which can achieve a good surface heating effect, and the heating depth ranges between 0.3 mm and 1 mm.

MAJOR FEATURES

• Micro parts can be heated. It can heat iron wire, steel wire, steel strip, miniature shafts, silver wire, fine gold and silver jewelry, and more.
• The surface heats up quickly. Its skin effect is more obvious, which can quickly heat the surface of the workpiece, so it is very suitable for surface hardening.
• High frequency. The highest frequency can reach more than 800 kHz, and the heating efficiency is high.
• Flexible. Small size, equipped with casters, easy to move.
• Self-protection function. Monitor current, voltage, water temperature, etc. When failure occurs, it can automatically alarm and stop running.

POWER REQUIREMENTS:

The power required to heat your work piece depends on:

• The mass of your work piece
• The material properties of your work piece
• The temperature increase you require
• The heating time required to meet your process needs
• The effectiveness of the field owing to the coil design
• Any heat losses during the heating process

After we determine the power needed to heat your work piece we can select the correct induction heating equipment taking the coil coupling efficiency into consideration.

THE PARAMETERS OF THE GYH-20AB:

ADVANTAGES OF HOT FORMING WITH INDUCTION HEATING:

• Fast heating
• Small heating depth
• Repeatability
• Consistent results
• Clean and pollution-free
• No flame

INDUCTION HEATING IN HOT FORMING IS APPLIED FOR DIFFENRENT PURPOSES:

• Heading - forming a head on blot, screw or rivet
• Blanking - cutting a whole piece from sheet metal
• Punching - cutting a hole
• Slotting - cutting of elongated holes
• Perforating - cutting a group of holes
• Trimming - cutting away excess metal
• Shearing - cutting in straight line across piece
• Bending - producing single, double, straight flange, edge hem, curl or double hem bends
