Precision Heating Copper Tube Induction Brazing Equipment 15KW 80KHZ

Precision Heating Copper Tube Induction Brazing Equipment 15KW 80KHZ
Features Gallery Product Description Request A Quote
Product Name: Induction Brazing Machine
Heating Principle: Magnetic Induction Heating
Cooling System: Water Cooling
Power: 15KW
Application: Brazing Sliver, Aluminum, Alloy Or Copper
Warranty: 1 Year, All Life Technology Support
Feature: Fast Heating,Environmentally Friendly,Energy Saving
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, All Life Technology Support
High Light:

Copper Tube Induction Brazing Equipment 15KW


Copper Tube Induction Brazing Equipment 80KHZ


Precision Induction Heating Equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE FCC ROHS SGS
Model Number: GY-15AB
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

Precise Heating 15KW 80KHZ Mosfet Induction Brazing Equipment For Copper Pipe

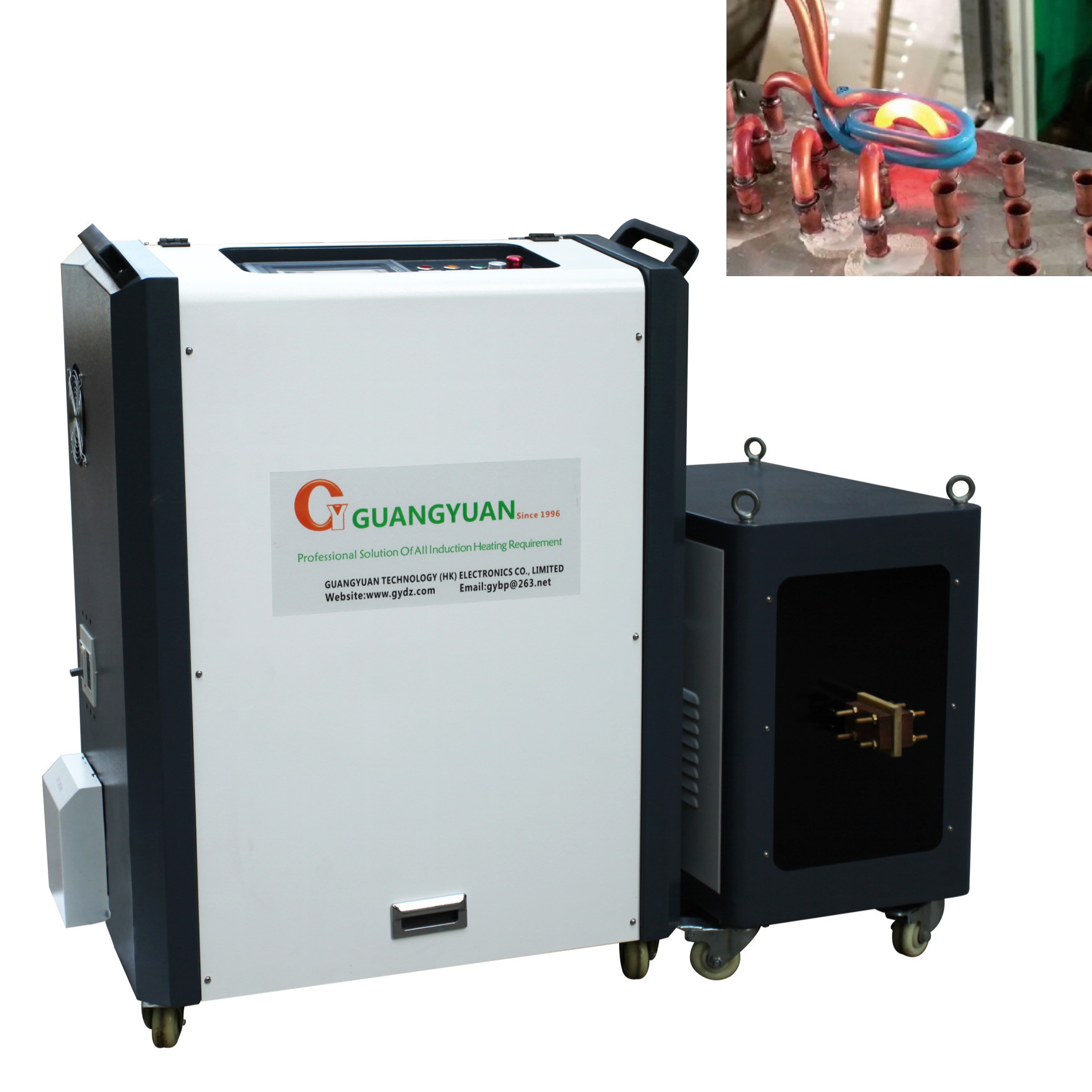

Precision Heating Copper Tube Induction Brazing Equipment 15KW 80KHZ 0



Materials are joined using brazing by welding one piece of metal to another without melting the base material (and usually by using a flux to prevent the filler metal from oxidizing). By capillary action, heat is used to melt the filler, so it can then be injected into the base material.


Induction brazing has many advantages over flame or furnace brazing. Fast, precise and reproducible heat input and reliability are outstanding benefits of this technology.GY offers induction heaters that are ideally adapted to the requirements of induction brazing for the following materials



Induction brazing of silver,gold,copper, copper alloys, brass, aluminum, iron, steel, stainless steel, and all types of carbides. In addition, materials such as tungsten, chromium, nickel, nickel alloys, cobalt and precious metals can also be joined by induction brazing.


technical parameters

The Parameters of the Precise Heating 15KW 80KHZ Mosfet Induction Brazing Equipment For Copper Pipe


Model GY-15A (Single phase)
work power 180V-250V
input current 35A
Fluctuating output power 15KW
fluctuating frequency 30-100KHZ
output current 200-600A
the flow rate of cooling water 0.06-0.12Mpa 7.5L/Min
water temperature protection point 40C
product size 570x230x450mm
net weight 27.5kgs

Delivery Time: within 3 workdays.
Shipping Term:By sea,By air,by express.


induction heating machine

induction brazing




Precision Heating Copper Tube Induction Brazing Equipment 15KW 80KHZ 4


Even ferrous and non-ferrous metals can be brazed together using induction brazing. Quick and precise, induction brazing allows for the joining of any metal. The heating process only affects narrowly defined areas, leaving adjacent areas and materials unaffected. Strong, leakproof, corrosion-resistant joints are formed by properly brazing. Furthermore, they are extremely neat, and do not need to be milled, ground, or finished. Adding induction brazing directly into the production line is one of its primary advantages.


induction heating machine application



Almost any brazing task can be accomplished with GY Induction systems. At present, our systems are used to braze generator and transformer components such as wires, rings, strands, and wired SC rings in the electrotechnical industry. Additionally, they braze parts for the AC and brakes of automobiles as well as fuel pipes. Inductance is used for brazing fan blades, casing blades, fuel lines, and hydraulics in the aeronautics industry. We braze components of compressors, heaters, and faucets for the houseware industry.


Precision Heating Copper Tube Induction Brazing Equipment 15KW 80KHZ 6



induction heating machine, induction heating equipment


The GY company is the leader today in production of induction equipment both in the domestic and foreign markets. If you want to buy the equipment for metal hardening at a reasonable price, it is best to purchase products directly from the manufacturer, without overpaying to intermediaries.

In order to purchase the unit for metal hardening, the price for which will be reasonable, please contact the GY directly, and soon you will receive reliable and high-tech equipment.

The company also sells induction hardening units of various capacities that are manufactured in accordance with high quality standards.

The specialists of the company are always aware of the market trends, and consider the needs and desires of the client as much as possible. We will be able to create any of the most complex equipment in accordance with requirements of the customer, with the shortest possible time. The products of our company are consistently high quality, reliability and durability.

We also provide quality warranty service, and post-warranty service on mutually beneficial terms.
