Industrial Induction Welding Equipment 80KHZ 3 Phase For Coffee Pot

1 set
Industrial Induction Welding Equipment 80KHZ 3 Phase For Coffee Pot
Features Gallery Product Description Request A Quote
Features: Energy Saving, Safer, More Efficient, Environmentally,
Product Name: Induction Welding Machine
Fluctuating Frequency: 30-80KHZ
Warranty: 12months
Technology Support: All Life
After-sales Service Provided: Engineer On-site Service, Online Support, Video Technical Support
Work Time: 24 Hours A Day
Applications: Welding Electric Heating Pan, Hot-water Kettle, Frying Pan And Coffee Pot
High Light:

Industrial Induction Welding Equipment


Induction Welding Equipment 80KHZ


3Phase Induction Welding Equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, SGS, ROHS
Model Number: GY-60C
Payment & Shipping Terms
Packaging Details: wooden boxes
Delivery Time: 5-8 workdays after payment
Payment Terms: T/T
Supply Ability: 500 sets per month
Product Description

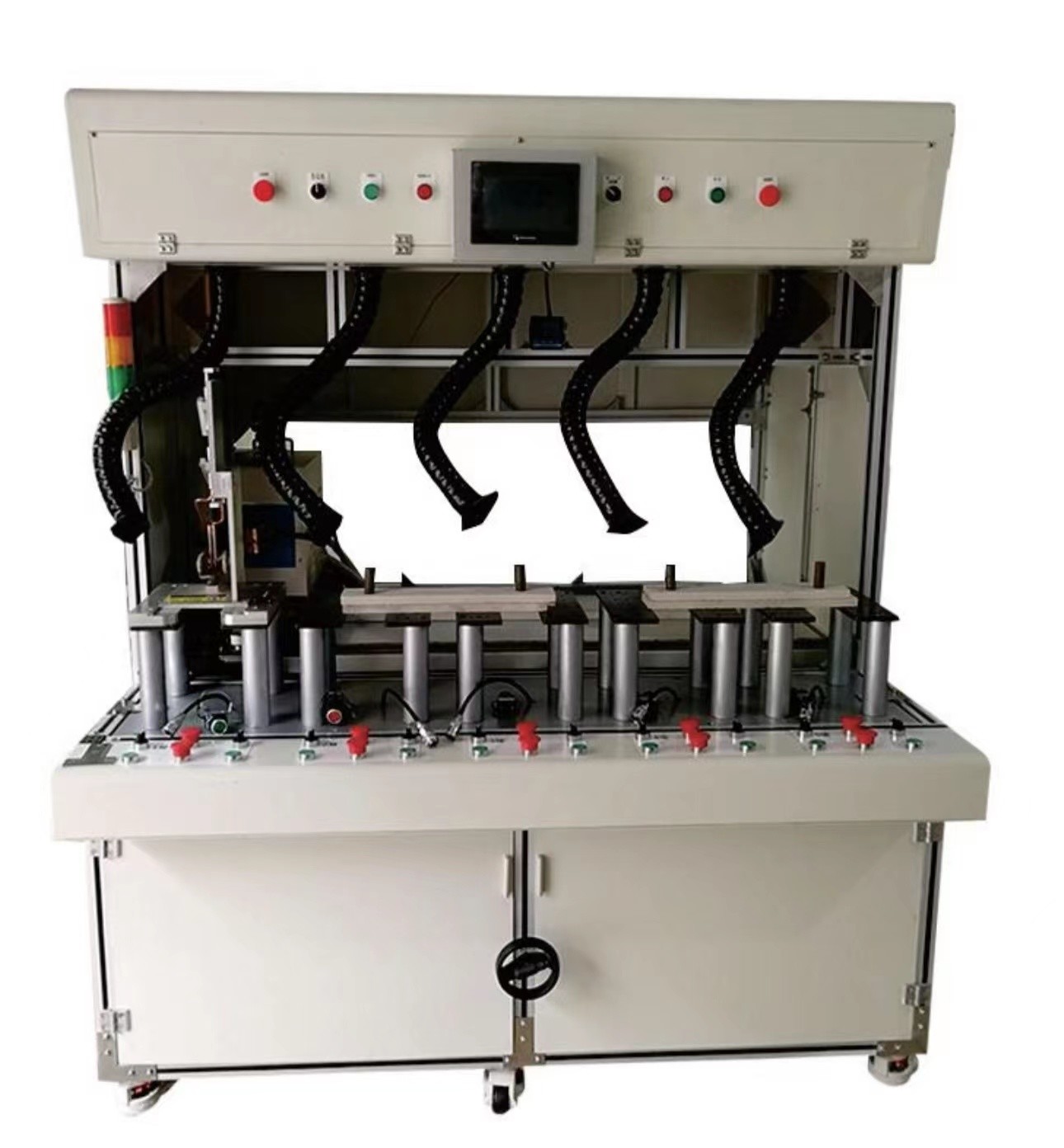

Multi Station Mobile Braze Induction Welding Equipment For Coffee Pot



Industrial Induction Welding Equipment 80KHZ 3 Phase For Coffee Pot 0


  • Three Phase multi station mobile braze welding equipment 60KW​ adopts the latest MOSFET, IGBT power units and frequency conversion control techniques with high efficiency, low energy consumption and higher output power.


  • With constant current and constant power control function to greatly optimize the heating process of metals, realize efficient and fast heating, and fully exert the superiority of the products.


  • Power consumption is half of traditional electron tube high frequency induction heating equipments under the same conditions.


  • With 100% load design, can work for continuous 24-hour a day. Infrared temperature detector can be equipped to realize the automatic control of temperature, improve heating quality and simplify manual operation.


  • With heating-insulating-cooling three stages function setting, the heating and insulating time required can be get to accommodate to the batch and repeated heating situations.


  • With multiple status display of overflow, over voltage, low water, phase failure and load malfunction, providing higher reliability and sustainability.
  • Select power supply according to the power and frequency. The higher the frequency, the shallower the heating depth, and the lower the frequency, the better the diathermancy.


Industrial Induction Welding Equipment 80KHZ 3 Phase For Coffee Pot 1



Three Phase Two Station Braze welding machine Induction heating machine 60KW


Application Brazing welding
Work power 360V-520V Out power 60KW
Model Number GY-60C Certificate CE,SGS, ROHS




Type GY-25C GY-40C GY-60C GY-80C
Work power Three phase 380V 50HZ Three phase 380V 50HZ Three phase 380V 50HZ Three phase 380V 50HZ
The range of operating voltage 360V-520V 360V-520V 360V-520V 360V-520V
Output power 25KW 40KW 60KW 80KW
Fluctuating frequency 30-80KHZ 30-80KHZ 30-80KHZ 30-80KHZ
Output current 200-1200A 400-1800A 400-2400A 400-3200A
Brazing diameters 150mm 250mm 300mm







Industrial Induction Welding Equipment 80KHZ 3 Phase For Coffee Pot 2



It uses the bigh power IGBT high frequency equipment to provide heating power and the pneumatic system as the drive. It has such features as stable operation, precise control, easy operation an high rate of products meeting standards, which is the most ideal equipment for manufacturing on new generation of electric heating stainless steel kitchen utensil.


It is applicable to the welding of such electric heating products as electric heating pan, hot-water kettle, frying pan and coffee pot, which can make the stainless steel plate, alumium sheet and tubular electric heating element of different shapes and thickness form an integral part through one-off metal braze welding.



Industrial Induction Welding Equipment 80KHZ 3 Phase For Coffee Pot 3

induction welding machinewelding machine


Industrial Induction Welding Equipment 80KHZ 3 Phase For Coffee Pot 6



1. Structural analysis:

  • Based on the accurate and reliable digital IGBT soft-switching technology, the air-cooled induction heating power supply adopts a fully air-cooled structure. Not only the efficiency is improved, and it will not produce scale blockage, structural water pipe leakage, water pipe aging and other failures, thereby greatly improving equipment stability and completely eliminate equipment failures from water system. This product is an output isolated secondary series resonance. Output isolation is conducive to safe operation; due to the use of digital control, To achieve extremely low inverter DC component, it is possible to adopt the secondary series resonance mode; the isolation transformer of the secondary series resonance. The device only carries active power and also adopts air-cooled structure.

2. Energy saving analysis:

  • For induction heating systems, the cooling water savings are also considerable. The internal heat dissipation system of the equipment does not require water Circulating cooling, only a small amount of cooling water is needed to cool the induction coil during high temperature heating, which greatly saves users Investment cost; if the tap water is directly discharged from cooling, the water cost loss is greater than the electricity loss caused by the equipment efficiency; if the ser uses circulating water cooling or a closed water chiller, the electric power required for water cooling and the water pump Electric power should still be included in the loss.

3. The life of air-cooled equipment is longer than water-cooled equipment.
