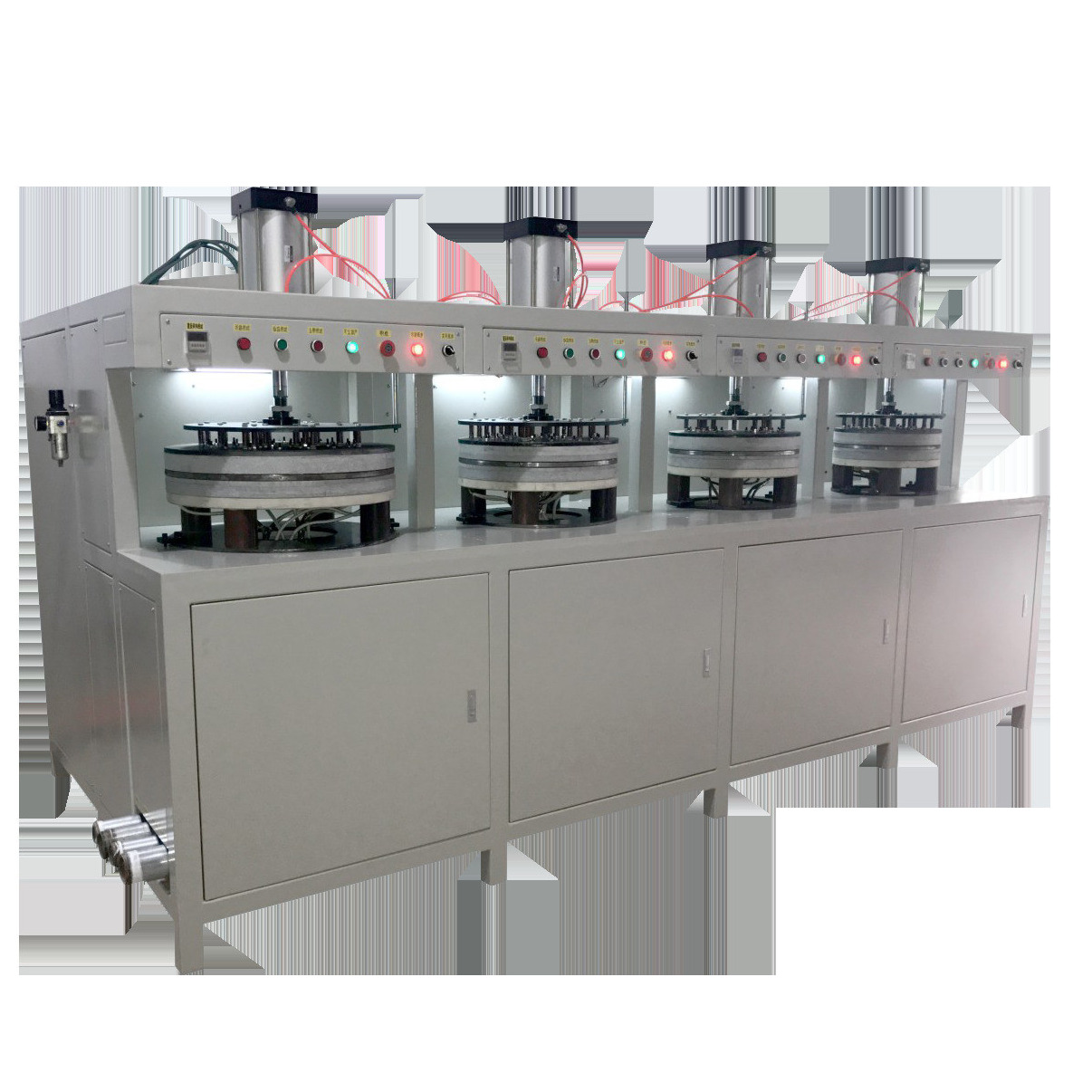

Multi Sataion Braze Induction Welding Equipment For Welding Hot-Water Kettle
INDUCTION WELDING EQUIPMENT :
Welding is the process of joining two metals where the base material is elevated to a high temperature to exceed its melting point and in which, using its liquid state, are mixed to form a union of the fusion of all parties involved including a filler material if exists.
The induction welding equipment uses the high power IGBT high frequency equipment to provide heating power and the pneumatic system as the drive. It has such features as stable operation, precise control, easy operation an high rate of products meeting standards, which is the most ideal equipment for manufacturing on new generation of electric heating stainless steel kitchen utensil.
QUICK DETAILS OF THE INDUCTION WELDING MACHINE:
| Name |
Three Phase Braze welding machine Induction heating machine 80KW
|
Application | Brazing welding |
| Work power | 360V-520V | Out power | 80KW |
| Model Number | GY-80C | Certificate | CE,SGS, ROHS |
TECHNICAL PARAMETERS OF THE INDUCTION WELDING MACHINE:
| Type | GY-25C | GY-40C | GY-60C | GY-80C |
| Work power | Three phase 380V 50HZ | Three phase 380V 50HZ | Three phase 380V 50HZ | Three phase 380V 50HZ |
| The range of operating voltage | 360V-520V | 360V-520V | 360V-520V | 360V-520V |
| Output power | 25KW | 40KW | 60KW | 80KW |
| Fluctuating frequency | 30-80KHZ | 30-80KHZ | 30-80KHZ | 30-80KHZ |
| Output current | 200-1200A | 400-1800A | 400-2400A | 400-3200A |
| Brazing diameters | 150mm | 250mm | 300mm |
400mm |
APPLICATIONS OF THE INDUCTION WELDING MACHINE:
It is applicable to the welding of such electric heating products as electric heating pan, hot-water kettle, frying pan and coffee pot, which can make the stainless steel plate, alumium sheet and tubular electric heating element of different shapes and thickness form an integral part through one-off metal braze welding.
THE ADVANTAGES OF THE INDUCTION WELDING:
1. Fast heating: the minimum rate of heating is less than 1 second (rate of heating is available for adjustment and control).
2. Wide coverage of heating: it can be used to heat various metal parts (replace removable induction coil as per different operating switches).
3. Easy installation: it can be used once it is connected with power source, induction coil as well as water supply pipe and rising pipe; it is small in size and light in weight.
4. Easy operation: you can learn to operate it within several minutes.
5. Fast start-up: it can be started to perform heating operation on condition that water and power supply is available.
6. Low power consumption: As compared with conventional vacuum tube high frequency equipments, it can save the power by approximately 70%. The smaller the size of the work piece is, the lower power consumption would be.
7. High effectiveness: it has such features as uniform heating (it is applicable to adjust the spacing of the induction coil to ensure the appropriate temperature as required by each part of work piece), fast warming and limited oxic horizon, and can guard against any waste after annealing.
8. Comprehensive protection: it has such functions as overpressure, over-current, overheat and water shortage alarm indications as well as automatic control and protection.
9. Controllable temperature: it is applicable to control the temperature for heating work pieces as per the preset heating time, and thereby control the heating temperature at a certain technical point.
10. Comprehensive full load design: it can work continuously for 24 hours.
11. Small size and light weight: it has a weight of only several dozens of kilograms, of which, the limited floor space can effectively save the workshop space.
12. Elimination of high voltage: it requires no step-up transformer which may produce approximately ten thousand voltage, and thus can ensure the maximum safety.
