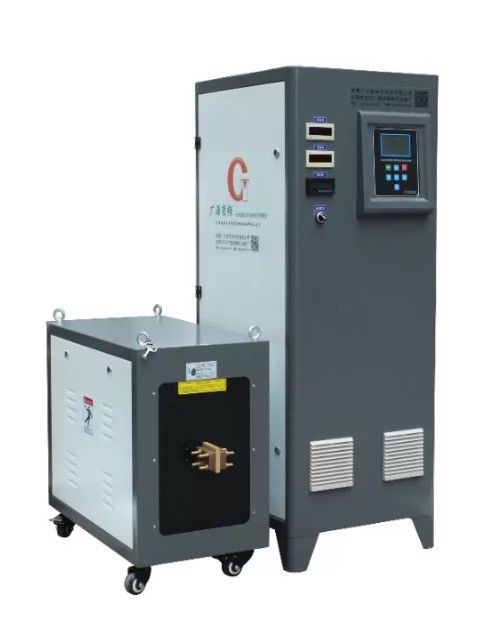

10-50KHZ Touch Screen Induction Quenching Machine For Quenching Gear And Axes
INDUCTION QUENCHING MACHINE:
The induction hardening process is a very important way in the manufacturing process of heat treatment of mechanical parts. In order to improve the hardness of metal's surface, not only should the surface layer depth of the workpiece reach the industrial design standard, but the heat treatment production plants are also needed to introduce the hardening process in the production. Functioning as an effective tool to implement the induction hardening process of steel, the induction hardening machine occupies an irreplaceable position in many heating methods, especially in the control of layer depth and temperature control.
INDUCTION HEATING WORK PRINCIPLE:
THE PARAMETERS OF THE INDUCTION QUENCHING MACHINE GYSQ-TC-120AB:
| Model | GYSQ-TC -120AB (Three phase) |
| work power | 340V-430V |
| Maximum input current | 180A |
| Output power | 120KW |
| fluctuating frequency | 10-50khz |
| output current | 400-4000A |
| the flow rate of cooling water | 0.08-0.16Mpa 10L/Min |
| water temperature protection point | 50C |
| product size | main : 770x550x1510mm |
| transformer : 870x430x750 mm | |
| net weight | main : 150gks |
| transformer : 120kgs |
APPLICATIONS OF THE INDUCTION QUENCHING MACHINE:
1. Quench for various hardware and tools, such as pliers, wrench, hammer, ax, screwing tools and shear (orchard shear).
2. Quench for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.
3. Various electric tools, such as gear and axes.
4. Quench for machine tools, such as lathe deck and guide rail.
5. Quench for various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.
6. Quench for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
7.Improve performance and save space.
8.Controllable and positioning heating.
9. Can handle specific parts of the work-piece (quenching profile).
10.High frequency hardening deep on about 1mm.
ADVANTAGES OF THE INDUCTION QUENCHING MACHINE:
1. It has a sensitive reaction speed;
2, Light touch screen front panel switch are not easy to enter debris, dust, oil penetration; Also it is easy to clean and dustproof;
3, Personalized design, simple and beautiful appearance,
4, Reasonable internal structure design (Less internal lost; Light load; Accessories are not easy become hot)
Our Service:
Pre-sale service.
1.Inquiry and consulting service
2.recommend the most suitable for our customers according to their requirements
3.Sample testing support
4.working videos available
5.View our factory
In-sale service.
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.
After-sale service.
1. Warranty time: 1year Warranty.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance technician to provide visiting service after checking with the customer and charge for a favorable price.
4. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
5. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
